Name: 50W 84PCS LED Street Light Module For Countryside Mountain Paths
Brand: mankun
Price: 1 USD

Place of Origin : Guangdong, China

Brand Name : mankun

Certification : ce, RoHS

Packaging Details : LED module bubble packaging, 10PCS each box, 100PCS a box

MOQ : 1000 Sets

Price : Negotiation

Model Number : 16307

Payment Terms : Negotiation

Supply Ability : 5000 Piece/Pieces per Day

Delivery Time : 5-30 work days

Power : 50W

Input Voltage : DC84V

LED QTY : 84PCS

Product name : Outdoor Street Module

Size : 300*70*160mm

Application : Street Lamps

Light source : 3030 White SMD LED

Lamp luminous efficiency(lm/w) : 160

Contact Now

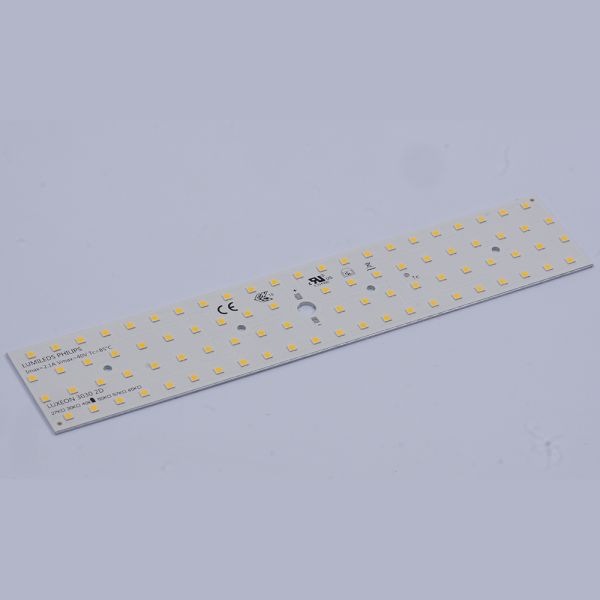

50W 84PCS LED Street Light Module For Countryside Mountain Paths

Outdoor Light 50w Waterproof LED Street Light Module Countryside Mountain Paths

Specification

Model	LED Street light module
Power	50w
IP Grade	IP65
Material	Aluminum
CCT	2700-6500K
pcb size	225451.6mm
lLED QTY's	84PCS
Module Size(mm)	30070160MM
Certification	Ce,RoHS
Light Chip	3030 SMD
Application	Outdoor,Tunnel,Street Lighting,Road,etc.

Specific technical dataFilter

CRI	CCT K	Current mA	Flux Tc 250C lm	Flux Tc 650C LM	Power Tc 650C W	Efficacy Tc 250C lm/W	Efficacy Tc 650C lm/W	lpk mA	Vmin. Tc 250C @lmin	Vmax. Tc 250C @lmax
MK16307	3000	1800	10166	10010	78.2	130	128	4800	42	43.4
		2400	13025	12817	104.2	125	123
		3600	18913	18756	156.3	121	120
	4000	1800	10948	10870	78.2	140	139
		2400	14380	14067	104.2	138	135
		3600	20945	20319	156.3	134	130
	5000	1800	10948	10870	78.2	140	139
		2400	14380	14067	104.2	138	135
		3600	20945	20319	156.3	134	130
The mentioned data can have a 10% tolerance.

Mark :

Test Temp. @ 25℃

XX for Different input option,

CRI>80 OR>90 is available in Plus, please check the final data with us again.

Lens options: 25/60/90/120/85x157 degree
