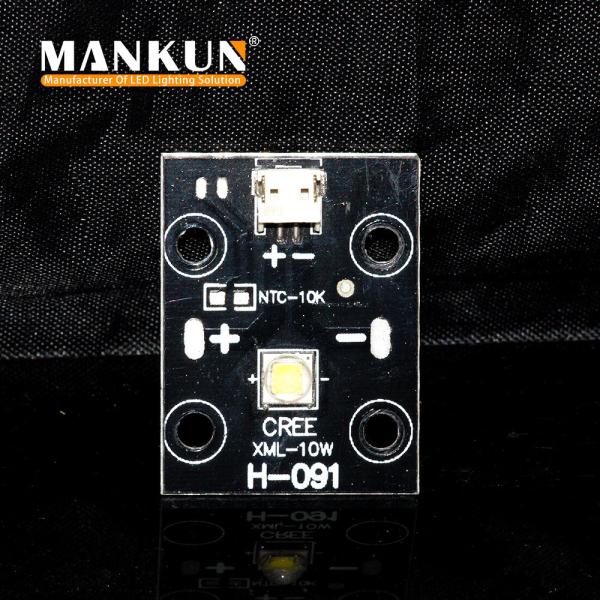

High Power DC 3V 10W Cree XML PCB LED Module For Flashlight Torch Lights

High Power DC 3V 10W Cree XML PCB LED Module For Flashlight Torch Lights

Product Description :

Highest-Performing, Commercially Available, Single-Die LED

Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC³ Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.

Product feature :

• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy)
measurements and ±2 on CRI measurements.
• Typical CRI for Cool White (5000 K – 8300 K CCT) is 65.
• Typical CRI for Neutral White (3700 K – 5000 K CCT) is 75.
• Typical CRI for Warm White (2600 K – 3700 K CCT) is 80.
• Minimum CRI for 80-CRI White is 80.
• Minimum CRI for 85-CRI White is 85.
• Minimum CRI for 90-CRI White is 90.
* Flux values @ 25 °C are calculated and are for reference only.
** Calculated flux values at 1000 mA, 1500 mA and 2000 mA are for reference only.

Applications:
